EX2200 Switch Series
Juniper EX2200 switches are ideal for access-layer deployments in branch offices and campus networks. They are available in 24 or 48 10/100/1000BASE-T port Models and a 12 port compact switch featuring fanless, silent operation, making it ideal for open office areas. Both Models are available with or without 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for supporting networked devices.
-

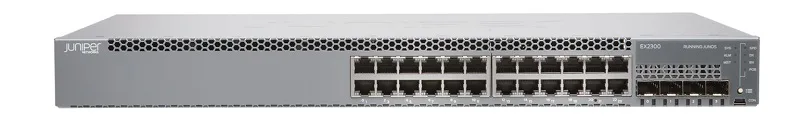

EX2300 Switch Series
Juniper EX2300 switches offer a cost-effective, compact, high-density design and are the ideal solution for small network environments where space and power are at a premium. They are available in 24 or 48 10/100/1000BASE-T port Models and a 12 port compact switch featuring fanless, silent operation, making it ideal for open office areas. Both Models are available with or without 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for supporting networked devices. They also support optional 10Gbe front panel port.
-
EX2500 Switch Series
The EX2500 Series of Ethernet Switch is an all 10-Gigabit Ethernet Aggregation Switch that consists of 24 x 10-G SFP+ Ports and 2 x 1G Management Ports. SFP+ or DACs can be used in these SFP+ Ports. It is a 1U Switch and is Rack Mountable – either vertically or horizontally.
-

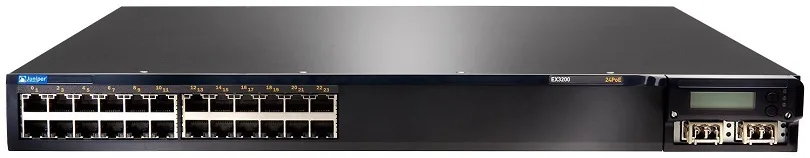

EX3200 Switch Series
Juniper EX3200 switches offer a high-performance, simple, cost-effective ethernet switching solution for wiring closet installations in low-density branch and regional offices. Models with 24 or 48 10/100/1000BASE-T ports are available, which is sufficient for most field office installations. They are field serviceable with fans and power supplies that are easily replaced by nontechnical personnel. High-speed connections to the network backbone are made through optional, field-installable four-port Gigabit ethernet (Gbe) and two-port 10Gbe uplink Modules. Full or partial Power over Ethernet options are also available.
-

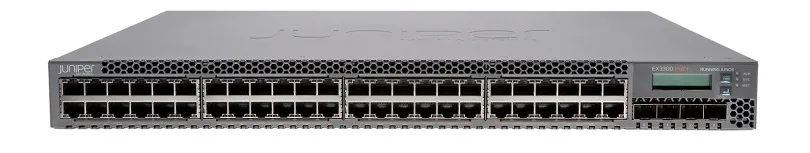

EX3300 Switch Series
Juniper EX3300 switches are flexible, cost-effective enterprise access solutions for campus and data center environments. Converged data, voice, and video are supported and they come with 24 or 48 10/100/1000BASE-T ports and four dual-Mode Gigabit ethernet (Gbe)/10Gbe small form-factor Pluggable transceiver (SFP/SFP+) uplink ports. IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ is supported and the switches offer front-to-back and back-to-front cooling options. They can also be configured with a DC power supply. Up to 10 EX3300 switches can be interconnected and operated as a Single device using Juniper's Virtual Chassis technology.
-

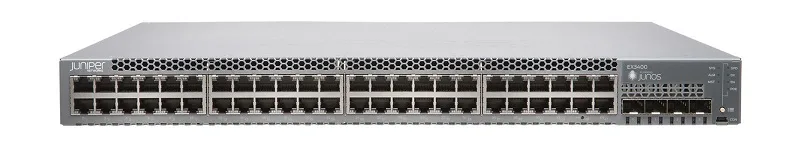

EX3400 Switch Series
Juniper EX3400 switches are a cost-effective solution for today's most demanding converged data, voice, and video enterprise access networks. Options are either 24 or 48 10/100/1000BASE-T ports, and they also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-Mode (Gbe/10Gbe) small form-factor pLuggable transceiver (SFP/SFP+) uplink ports and two 40Gbe quad SFP+ (QSFP+) ports are also available for connecting the switches to upstream devices.
-

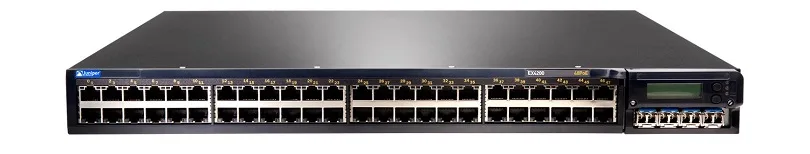

EX4200 Switch Series
Juniper EX4200 switches are a compact, fixed-configuration solution easily deployed in campus installations, as well as in 1 Gigabit ethernet (1Gbe) access environments in the data center. EX4200 brings flexible, scalable, high-performance switching to campuses and data center top-of-rack deployments. Available in both 24- and 48-port configurations, and optionally include full or partial IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+. A 24-port 100BASE-FX/1000BASE-X SFP-based Fiber configuration is available for Gigabit aggregation in long-distance deployments. Available uplinks include 4-port 1Gbe or 2-port 10Gbe Copper or Fiber configurations, with and without Media Access Control Security (MACsec) capabilities. Up to 10 EX4200 switches can be interconnected and operated as a Single device using Juniper's Virtual Chassis technology. They can also be combined with EX4500 and EX4550 switches in the same virtual chassis to support mixed 1Gbe and 10Gbe environments.
-
EX4300 Switch Series
The EX4300 series of Ethernet switches offers performance, flexibility, and scale for both campus and data centre Gigabit Ethernet (GbE) areas. It offers a full suite of Layer 2 and Layer 3 switching capabilities. A single 24-port or 48-port EX4300 switch can be deployed initially. Juniper’s Virtual Chassis technology allows any combination of up to 10 x EX4300 and/or EX4600 switches to be interconnected and managed as a single device. A pair of 32-port EX4300 fibre switches can also be deployed as a consolidated aggregation or small core switch, as an example.
-
EX4500 Switch Series
The EX4500 series of Ethernet switches delivers a scalable, high-performance platform for supporting high-density 1 Gbps and 10 Gbps data centre top-of-rack as well as data centre, campus, and service provider deployments. The series features up to 48 wire-speed 10GbE ports in a two rack unit platforms. They deliver Layer 2 and Layer 3 connectivity to networked devices, and the EX4500 base switch provides 40 fixed 10GbE pluggable ports that can also support GbE connectors for added flexibility.
-
EX4600 Switch Series
The EX4600 series of Ethernet switches delivers data centre class scale, high availability, and high performance to campus distribution deployments. It offers fixed 10 Gpbs and modular 10 Gpbs and 40 Gbps ports, giving you the flexibility to also implement in data centre top-of-rack deployments. The EX4600 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. The series features up to 72 wire-speed 10GbE small form-factor SFP/SFP+ ports, and up to 12 wire-speed 40GbE quad SFP+ (QSFP+) ports in a compact one rack unit (1 U) platform, the base switch provides 24 fixed 1GbE SFP/10GbE SFP+ ports1 and 4 fixed 40GbE QSFP+ ports, providing the flexibility to support mixed 1GbE, 10GbE and 40GbE environments. Four models are available: two featuring AC power supplies and front-to-back or back-to-front airflow; and two featuring DC power supplies and front-to-back or back-to-front airflow. Each model includes dual power supplies and there are expansion modules available.
-
EX6200 Switch Series
The EX6200 series of Ethernet Chassis switches are scalable, resilient and a high-performance chassis-based solution, providing high port densities in a space-optimized form factor. There is a choice of data only or Power over Ethernet (PoE) and PoE+ port options, and the EX6200 delivers high availability and investment protection for enterprise campus environments, as well as data centre access deployments using end-of-row designs. The EX6210 offers a total of 10 slots - two of the slots are designed to hold Switch Fabric and Routing Engine (SRE) modules, while the remaining eight slots are dedicated I/O slots for holding any combination of EX6200 line cards. Since only one SRE module is required for switch operations, one of the SRE slots can be optionally configured as an I/O slot, enabling the switch to support a total of nine EX6200 line cards.
-
EX8208 Switch Series
The EX8208 modular Ethernet switch offers a flexible and powerful platform with a total capacity of up to 6.2 Tbps. The eight-slot EX8208 is a part of the Juniper Networks EX8200 line of Ethernet Switches and is ideal for aggregating access switches such as Juniper Networks EX2200, EX3200, EX3300, EX4200, EX4500 and EX6200 in campus wiring-closets and in data-centre top-of-rack applications. It is also designed to support 1-Gigabit/10-Gigabit Ethernet server access in data centre end-of-row chassis deployments. In core applications, the EX8208 provides approximately 960 Mpps of high-density, wire-speed 10-Gigabit Ethernet performance for larger networks. The switch also features eight dedicated line-card slots that can accommodate a variety of EX8200 ethernet line cards.
-
EX9200 Switch Series
The EX9200 modular Ethernet switches provide a programmable, flexible, and scalable core for applications in both campus and data centre environments. High port densities allow the EX9200 to dramatically simplify campus and data centre spaces. The EX9200 is also a key component of Juniper’s MetaFabric architecture, providing simple, open and smart approaches to building data centre networks. The EX9200 is based on Juniper One custom silicon, an ASIC designed by Juniper. The programmability of the EX9200 allows it to support Junos OS-based automation along with the Junos SDK. Three EX9200 chassis options are available, providing full deployment flexibility.
-
QFX5100 Switch Series
The QFX5100 series of access and aggregation switches deliver low latency, flexible deployment options, and rich Layer 2 and Layer 3 features. The QFX5100 is designed for the most demanding, high-performance deployments. The QFX5100 is highly flexible and can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis, Virtual Chassis Fabric, and Junos Fusion architectures. With its diverse set of deployment options, including fabric, Layer 3, and spine and leaf, the QFX5100 is the universal building block for data centre switching architectures, and the line includes 10GbE (fibre/copper) and 40GbE fixed-configuration options with Layer 2, Layer 3, and MPLS features. Featuring a built-in Insight Technology capability, the QFX5100 provides valuable performance and troubleshooting and the series can also be used as a Satellite device in a Junos Fusion fabric architecture. The QFX5100 line includes four compact 1 U models and one 2 U model, each providing wire-speed packet performance, very low latency, and in addition to a high throughput PFE, the performance of the control plane running on all QFX5100 models is further enhanced with a powerful 1.5 GHz dual-core Intel CPU with 8 GB of memory and 32 GB SSD storage.
